Nikon D500 DX-Format DSLR (Tech Specs)

CES 2016 in Las Vegas saw the announcement of two new Nikon cameras, the Nikon D5, and the Nikon D500

We decided to cover both of them!

Here below is the Nikon D500 tech specs. We have a related post which covers the Nikon D5 Tech-Specs.

While the wait for a worthy successor to the D4S (Nikon’s flagship full-frame) was long overdue, a renewed presence in the DX format was badly needed as well.

Nikon has a few models in the DX format segment which could hold their own, chief among them being the D7200, but none can match the new D500 regarding its superior autofocusing, shooting speed and of course 4K video abilities.

Related Articles: Best DSLRs for video shooting

Plus the true DX champ, the D300S is an aging product (in fact, Nikon has stopped manufacturing it). The launch of the new Nikon D500 is thus the dawn of a new era of DX-format shooting.

The new D500 is the new flagship DX-format DSLR in the Nikon stable.

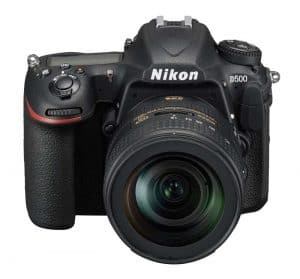

Nikon D500 Review: Front View
Nikon D500: The new top DX-Format DSLR of Nikon

Build Quality

For those of you who have a D810, the ergonomics are conspicuous. The D500 is modeled on the D810. Dedicated buttons for White Balance, Metering, the lack of a pop-flash all point to the inevitable conclusion that this is a pro photographer’s camera. As a matter of fact, the lack of the flash adds to the overall weather sealing capabilities of the camera.

Build quality is solid. Magnesium alloy construction at the top and back of the camera. But instead of an all magnesium alloy construction like the D5, with which it shared the stage, the D500 has lightweight carbon fiber in some areas.


A casual glance at the spec sheet and a certain 20.9 MP against the resolution row might catch your attention. After all, even the D7200 has a 24 MP resolution sensor. But where the D500 loses out on the resolution it more than makes up in metering and autofocusing prowess.

The camera can produce images as large as 5568 x 3712 pixels.

Auto-focusing points and AF system

The D500 shares the same ground-breaking autofocusing technology as the new FX flagship camera. It has a 153-point AF system. Out of this 99 of them are cross-type. However, just like the D5, only 55 are selectable at any time.

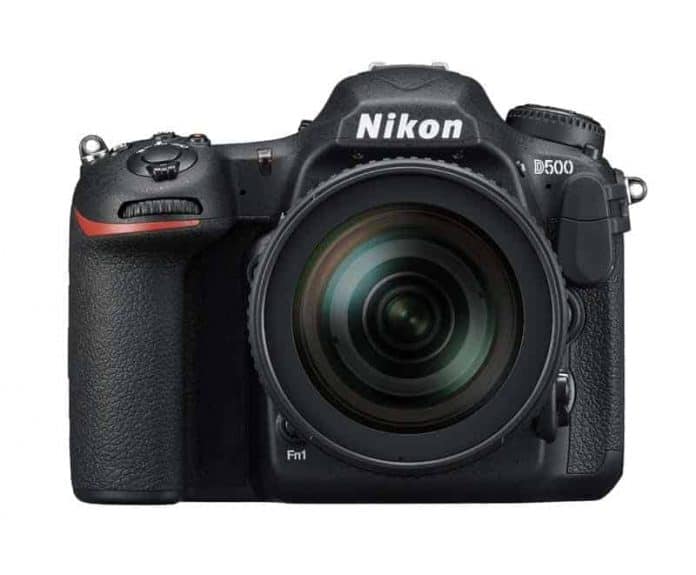

Front View of Nikon D500 with kit lens

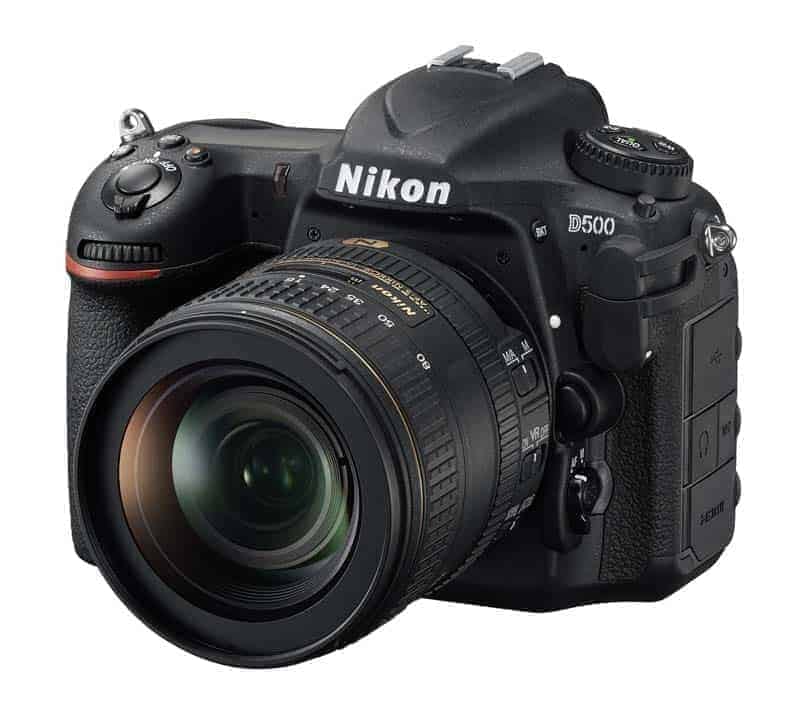

Nikon D500 with the 16-80mm ED VR Lens
Nikon D500 DX-Format Digital SLR (Body Only), Base
  • 20.9MP DX format CMOS sensor. Viewfinder: Eye level pentaprism single lens reflex viewfinder
  • Expeed 5 image processor; Monitor size: 3.2 inches diagonal
  • 3.2 inches 2,539k dot tilting touchscreen LCD
  • 4k UHD video recording at 30 fps
  • Multi cam 20k 153 point AF system


Many of the features of the new flagship, the D5 has trickled down to the new Nikon D500 as well. For example, the D500 inherits the 180-pixels RGB metering system of the new FX flagship.


The D500 has a native ISO sensitivity of 100 – 51200. It can, however, be expanded to 50 – 1,640,000.

Continuous Shooting Speed

Powered by the same EXPEED 5 image processing engine as the D5, the D500 can shoot at a continuous shooting speed of 10 fps for a maximum of 200 RAW shots.

This DX camera is no pushover in fast action, sports or bird photography and should give pro level DSLRs a run for their money.

4K Shooting

The D500 gets 4K shooting abilities just like the D5. The resolution is actually UHD 3840 x 2160 (@ 30, 25 and cinematic 24 fps). It shoots full-HD in 60, 50, 30, 25 and 24 fps. While recording 4K videos, you can still shoot full resolution stills cropped to 5568 x 3128.

Unlike the D5 the D500 can shoot 4K videos for a maximum of 29:59 mins. Movies are recorded in MOV format with sound recorded via the built-in stereo. You can optionally plug in an external stereo mic for better quality sound.


D500 has all the bells and whistles when it comes to connectivity features. Starting from the archaic ability to plug in a cable to access the images straight from the camera, to taking the card out to plug into a laptop or card reader. Plus, it has Bluetooth connectivity as well NFC.

With NFC, you can pair a compatible smartphone just by tapping it to the camera.

Nikon has paired the camera with SnapBridge. This allows the camera to automatically send images to a compatible paired device. If the camera is paired with a smartphone, then GPS data can also be pulled into the image EXIF.


The D500 has a dual card slot. One accepts SD cards and the other high-capacity XQD cards.

Touch Screen

Along with the D5, the Nikon D500 too gains a touchscreen. The bright 3.2” (diagonal) screen has a resolution of 2359 k dots and a viewing angle of 170˚.

The screen can be flipped up and down allowing you to compose from a different point of view. A boom-type protrusion extends the screen, and it then flips out up and down.

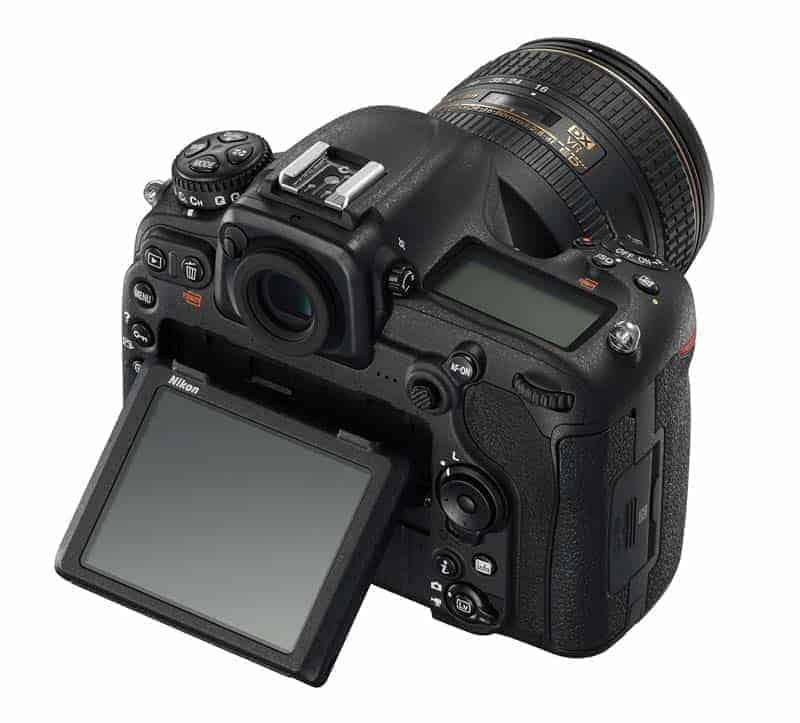

Nikon D500 Touch Screen
The high resolution 3.2″ tilt touchscreen display of Nikon D500


The D500 is powered by Nikon’s EN-EL15 battery. Nikon has maintained a healthy consistency across some professional cameras including the FX-format D750, the D810 and the very popular DX format cameras the D7200 and the D7100 regarding power.

If you are upgrading from either of the two DX format cameras or have either of the two full-frame cameras having the same battery is a convenience factor.


You can buy the new Nikon D500 on major online stores at $999.99.

At that price, you could seriously look into some full-frame options such as the Nikon D750, the D610 and even some rival Canon products.

Related Post: Amazon Warehouse Deals

Nikon D500 Review: Final Verdict

Should you buy it?

The new Nikon D500 makes good buying sense in a lot of ways:

  • If a majority of your lenses are DX format, the D500 does make an excellent upgrade option.
  • Under $2K you get a serious pro shooter which will rival even full-frame DSLRs.
  • At ten fps with full autofocusing and autoexposure and with a 153-point AF system, this is the best crop DSLR camera for shooting sports, action, and wildlife.
  • With a stunning ISO sensitivity of 50 – 1,640,000 together with EXPEED 5 image processing, low light performance is undisputed.
  • To top it all, you have Bluetooth, NFC, Wi-Fi and 4K video shooting.
  • For someone who already owns a full-frame, the D500 is a good lightweight option to take advantage of the crop factor now and then with a full-frame lens.

Overall this is a fantastic camera you will never go wrong with.

Nikon D500 DX-Format Digital SLR (Body Only), Base
Nikon D500 DX-Format Digital SLR with 16-80mm ED VR Lens
