Portkeys LH7C Released: 7-Inch Monitor with Single-Cable Camera Control for $249

Key Takeaways

• Portkeys has released the LH7C, a 7-inch on-camera monitor with 1,000 nits brightness and wired camera control for Sony, Canon, and Panasonic cameras – priced at $249.
• Powered by MOVNORM OS, it includes professional monitoring tools like 3D LUT support, anamorphic de-squeeze, ARRI False Color, and waveform analysis.
• The included TA03Y combo cable merges HDMI and USB-C into a single connection, enabling touchscreen camera control (ISO, aperture, shutter, focus area) directly from the monitor.
• Weighing just 245g (8.6 oz), the LH7C is reportedly up to 30% lighter than most competing 7-inch monitors.

Portkeys has just launched the LH7C, a 7-inch on-camera field monitor that packs a 1,000-nit touchscreen, full camera control capabilities, and a lightweight 245g body into a package that costs just $249.

The monitor runs on Portkeys’ proprietary MOVNORM OS and ships with the new TA03Y combo cable – a single ultra-thin cable that handles both HDMI video and USB-C camera control. If you’ve been juggling multiple cables between your camera and monitor, this is designed to fix that.

Key Specs and Features

The LH7C features a 7-inch IPS LCD touchscreen with 1920 x 1080 resolution and a maximum brightness of 1,000 nits, making it fully daylight-viewable. The panel uses an 8+2 FRC 10-bit process with a 1,000:1 contrast ratio and 100% Rec.709 color coverage.

Here are the headline specs:

• Display: 7-inch IPS LCD, 1920 x 1080, 10-bit (8+2 FRC)

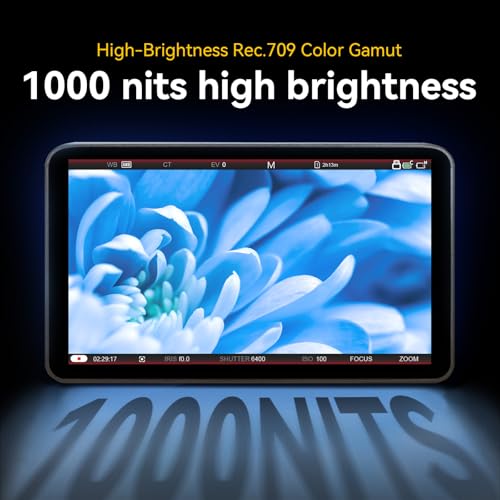

• Brightness: 1,000 nits
• Contrast ratio: 1,000:1
• Viewing angle: 170 degrees
• Input resolution: Up to DCI 4K at 24P, 4K UHD at 25P, 1080P at 60P
• Ports: HDMI in/out, 3.5mm headphone jack, USB-A (for LUTs), 7-24V DC input
• Power: 8W draw, Sony L-Series battery plate
• Weight: 245g (8.6 oz)
• Dimensions: 17.6 x 10.3 x 1.8 cm (6.93 x 4.08 x 0.72 in)
• Mounting: Three 1/4″-20 mounting points (bottom, left, right)

Four user-assignable buttons sit along the top edge alongside a touchscreen lock switch and power button. Power consumption is a miserly 8W, meaning a standard Sony NP-F battery will keep it running for extended shoots.

MOVNORM OS and Monitoring Tools

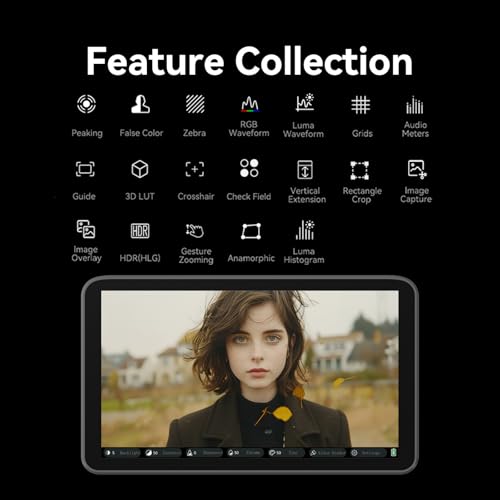

The MOVNORM operating system is where the LH7C punches well above its price class. It includes a comprehensive suite of professional monitoring tools:

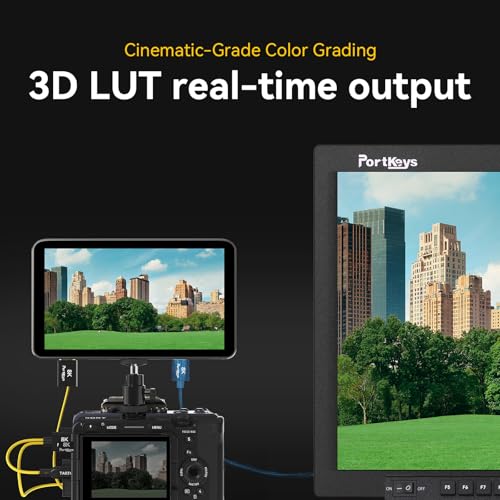

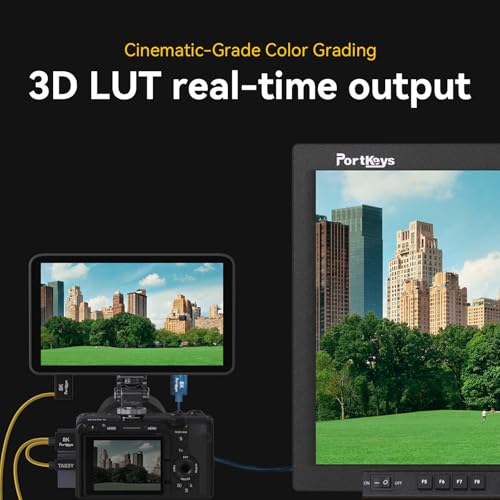

• 3D LUT monitoring with HDMI output – load up to 20 custom LUTs via USB-A
• Anamorphic de-squeeze with 10 preset ratios (1.33x through 2.0x) plus custom ratios from 0.25x to 4.0x
• Freeze frame capture and overlay comparison (ideal for stop-motion work)
• Focus tools: peaking, custom peaking frame, gesture zooming
• Exposure analysis: RGB and Luma waveform, histogram, zebra, and customizable false color with 13 colors including ARRI False Color
• Log Stops: automatic Sony LOG recognition with zone-based exposure monitoring (support for other brands coming via firmware)
• Framing tools: crosshair, guides, grids, rectangular crop
• Audio meters and full monitor calibration controls

The vertical extension feature is also worth noting – when shooting in portrait mode, the lower section of the image can be elongated and output through HDMI, which is useful for social media content creators shooting vertical video.

Single-Cable Camera Control

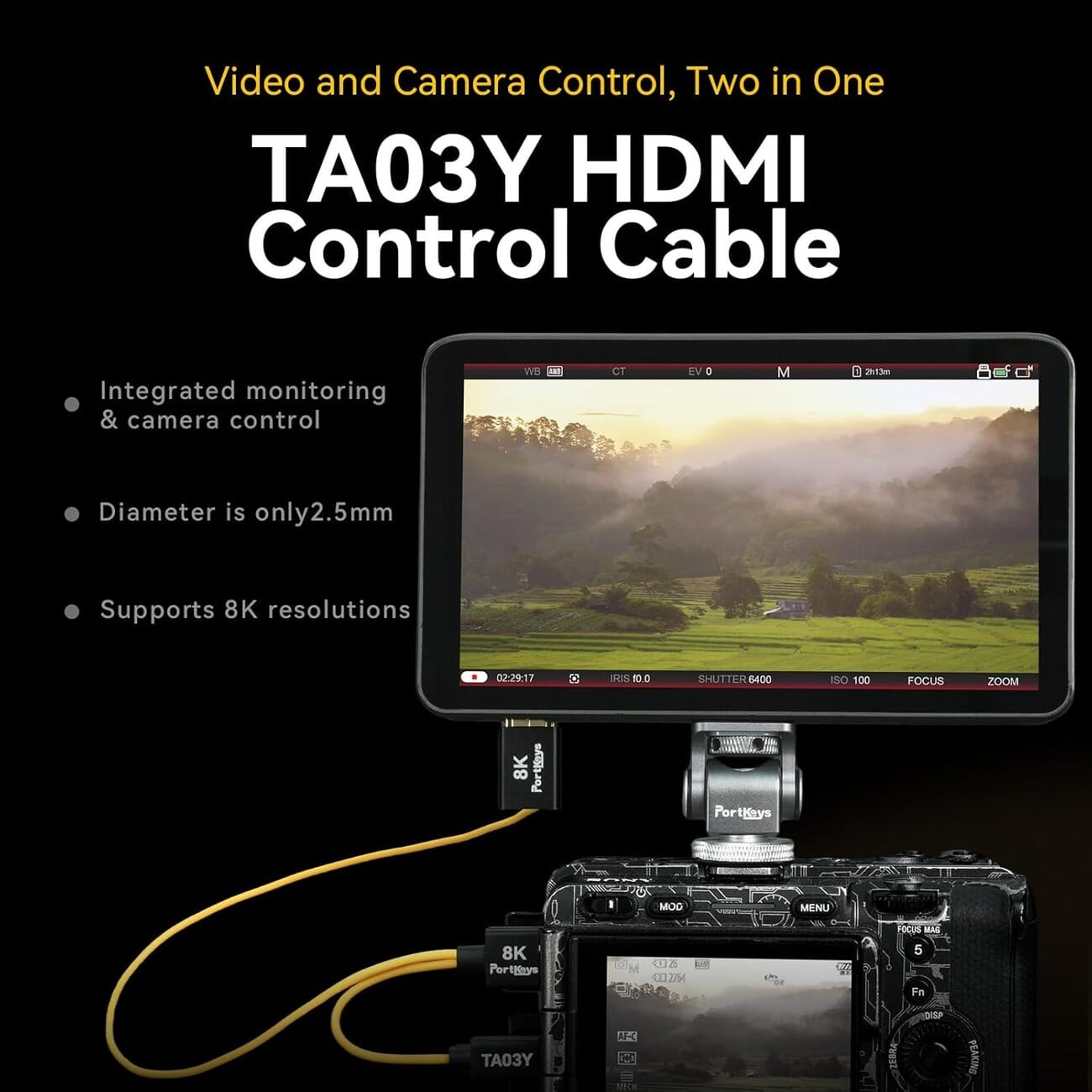

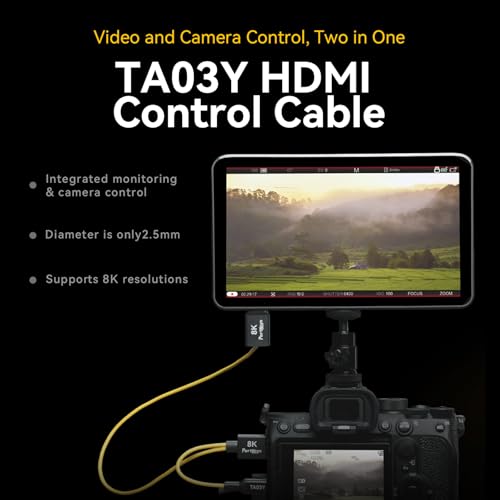

The standout feature of the LH7C is its wired camera control via the included TA03Y combo cable. This ultra-thin 2.5mm cable combines HDMI and USB-C connections on the camera side into a single plug for the monitor, carrying both video signal and control data.

Once connected, you can control the following directly from the LH7C’s touchscreen:

• ISO, aperture, and shutter speed
• White balance and AF mode
• Start/stop recording
• Set focus area with a tap

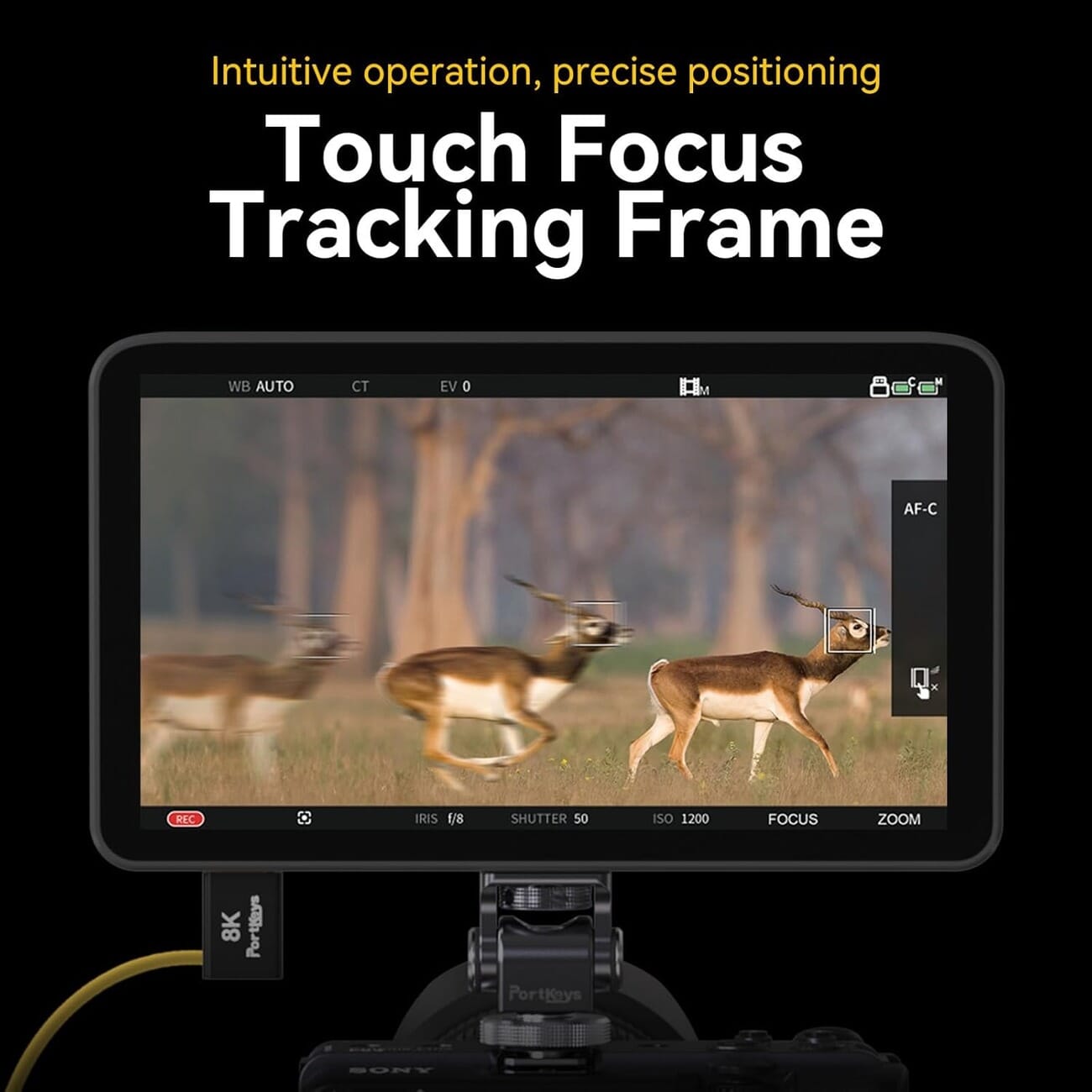

• Drag AF tracking box (Sony cameras, with more brands coming)

Supported Cameras

The LH7C supports wired control for a wide range of cameras across three major brands:

• Sony: FX3, FX30, A1, A9 III, A9 II, A7 V, A7 IV, A7S III, and more
• Canon: EOS R1, R5 Mark II, R6 Mark III
• Panasonic: S1, S1R, S5 II, S5 IIX, GH5 II, GH6, GH7

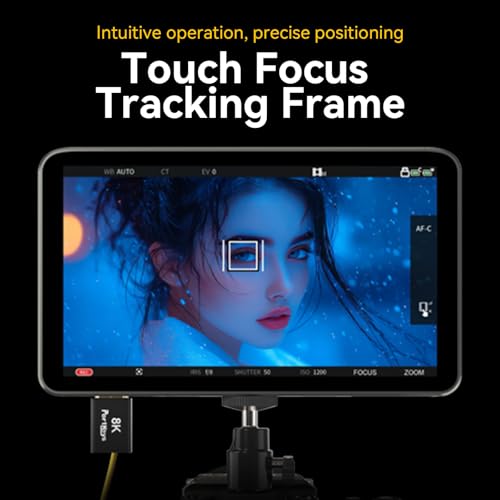

Sony shooters get an extra perk: a Focus Tracking Frame feature that lets you drag the AF tracking box directly on the monitor’s screen. Portkeys says support for other brands is coming via free firmware updates.

How It Stacks Up Against the Competition

At $249, the LH7C sits in a competitive spot. The best field monitors in this size range include the Atomos Shinobi 7 (around $399) and SmallHD Indie 7 (around $999). Neither of those lower-priced competitors offer integrated wired camera control – that’s typically a feature reserved for higher-end monitors.

Portkeys’ closest in-house sibling is the LH5C, which offers similar camera control features in a smaller 5.4-inch form factor with 800 nits for the same $249 price. The LH7C gives you a bigger screen, higher brightness, and HDMI output for $0 extra – making it the better value if you don’t mind the larger footprint.

For indie filmmakers and hybrid shooters who want camera control without paying Atomos or SmallHD prices, the LH7C is worth a serious look.

Price and Where to Buy

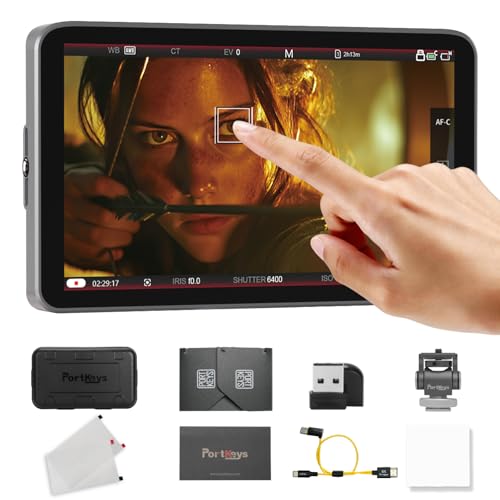

The Portkeys LH7C is available now for $249. In the box, you get the monitor, a sun shade, cold shoe mount, mini USB stick, screen wipe, two screen protectors, a safety case, and the TA03Y video control combo cable.

When you buy through links on our site, we may earn a commission at no cost to you. We evaluate products independently. Commissions do not affect our evaluations. As an Amazon Associate, we earn from qualifying purchases.

Portkeys LH7C 7" Camera Field Monitor

New Portkeys

Image from Amazon

Ideal for

Hybrid shooters and indie filmmakers who want touchscreen camera control on a budget

Strengths

• Single-cable camera control for Sony, Canon, and Panasonic
• 1,000 nits daylight-viewable brightness
• Full monitoring suite with 3D LUT, anamorphic, ARRI False Color
• Ultra-light at 245g – 30% lighter than competitors
• Low 8W power draw with Sony NP-F battery support

Limitations

• No wireless camera control (wired only via combo cable)
• 1080p panel resolution (competitors offer higher)
• Sony LOG auto-recognition only for now (other brands coming via firmware)

What you need to know

The LH7C delivers camera control features typically found in monitors costing two to three times more. If you shoot with Sony, Canon, or Panasonic and want to control your camera from the monitor without spending $400+, this is the one to get.

$249.00 from Amazon

Portkeys LH7C 9 Photos

You can also purchase the LH7C directly from the Portkeys website ($299 MSRP). Portkeys monitors are also typically available at B&H Photo and Adorama, though the LH7C may take a few weeks to appear at those retailers.

Who Is the LH7C For?

The Portkeys LH7C targets a specific audience: hybrid photo/video shooters and indie filmmakers who want professional monitoring tools and camera control without breaking the bank.

If you’re a solo shooter who frequently adjusts camera settings while operating from behind a gimbal, cage, or rig, the touchscreen camera control eliminates the need to reach for the camera body. The single-cable solution keeps your rig clean and reduces cable management headaches.

Content creators shooting for social media will appreciate the vertical extension and anamorphic de-squeeze features. Documentary shooters and run-and-gun videographers will value the 245g weight and 8W power draw – this monitor won’t weigh down your rig or drain your batteries.

For those already invested in the Portkeys ecosystem, the LH7C slots in as a bigger, brighter upgrade from the LH5C without requiring a bigger budget.
