The Leica M10 Full Frame: Tech Specs

Leica announced the launch of their latest digital rangefinder camera – the Leica M10.

Available at Leica dealer stores since January 19th, 2017 the Leica M10 is designed around a new 24-megapixel sensor.

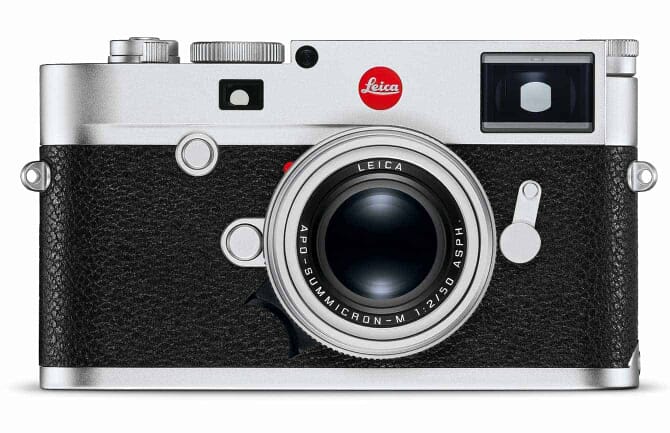

New Leica M10
The New Leica M10. is now available on Amazon.com. It ain’t cheap tough!

The new Leica has a redesigned frame, and the new digital rangefinder promises to be “the perfect balance of long-established traditions and technical innovation.”

Leica M10 Digital Rangefinder Camera (Silver)
  • 24MP Full-Frame CMOS Sensor
  • Leica Maestro II Image Processor
  • Optical 0.73x-Magnification Viewfinder
  • 3.0" 1.04m-Dot LCD with Gorilla Glass
  • ISO 100-50000, Up to 5 fps Shooting

Related Post: Leica’s New Prime Lenses (75mm and 90mm)

The M10 Sensor

A newly developed full-frame 24 megapixel CMOS beats as the heart of the Leica M10. The sensor does not have an optical low-pass filter. The absence of an OLPF means the camera is capable of making sharper captures than traditional OLPF equipped sensors. The large sensor is capable of recording fine JPEGs and RAW frames of the size 5976 x 3992 pixels.

Image Processing

The M10 does have a newish processor to go with the newly developed sensor. This is the ‘Maestro II’ processor, and we have previously seen that in the Leica SL. It has 2 GB buffer memory which gives it extended continuous shooting speeds.

Continuous Shooting

Continuous shooting speed of the M10 is five fps for a maximum of 30 RAW frames. Alternatively, you choose to shoot in JPEG and capture a maximum of 100 JPEG files in one burst. Though continuous shooting speed isn’t something that is ideal for fast action, the extended buffer capacity means you can grab as many frames as necessary to get at least one sharp frame in everyday shooting situations.

Auto-Focusing with the Leica M10

There is no auto-focusing. The M10 focuses entirely manually. That, however, can be both fun and a nuisance depending on the type of photographer you are. If you always had a lot of fun working with manual cameras and manual focusing systems, this is something you would enjoy immensely. Quite the contrary if your entire photography career has been based on auto-focusing systems.

ISO Sensitivity

Native ISO sensitivity of the camera is 100 – 6400. However, it can be extended up to 50,000. Not much is known at this point as to how effective the sensor’s noise handling capabilities are at high ISO.

Video Recording

The Leica M10 does not have video recording options.

Related Post: Want to Shoot Video? Then the EOS 80D is for You!


Built-in Wi-Fi is probably the only ‘modern’ need that has been granted by Leica in this camera. Other than that there is no USB port. Meaning you can’t simply plug a USB cable and download the images to your computer.

The wireless feature does something else. It gives you the ability to control your Leica M10 remotely using a compatible smartphone or tab and shoot images with it.

Optical Viewfinder

The optical viewfinder of a rangefinder is the point of synergy where human element touches the machine components. Compared to previous Leica M cameras the viewfinder of the M10 has a 30% larger real estate. Previous cameras had a magnification of 0.68x. The M10 has a magnification of 0.73x.

However, the Leica M10 comes with an option to attach an external electronic viewfinder. An external electronic viewfinder gives the live-view feed of what the sensor sees. In a way that’s more accurate regarding exposure and framing.

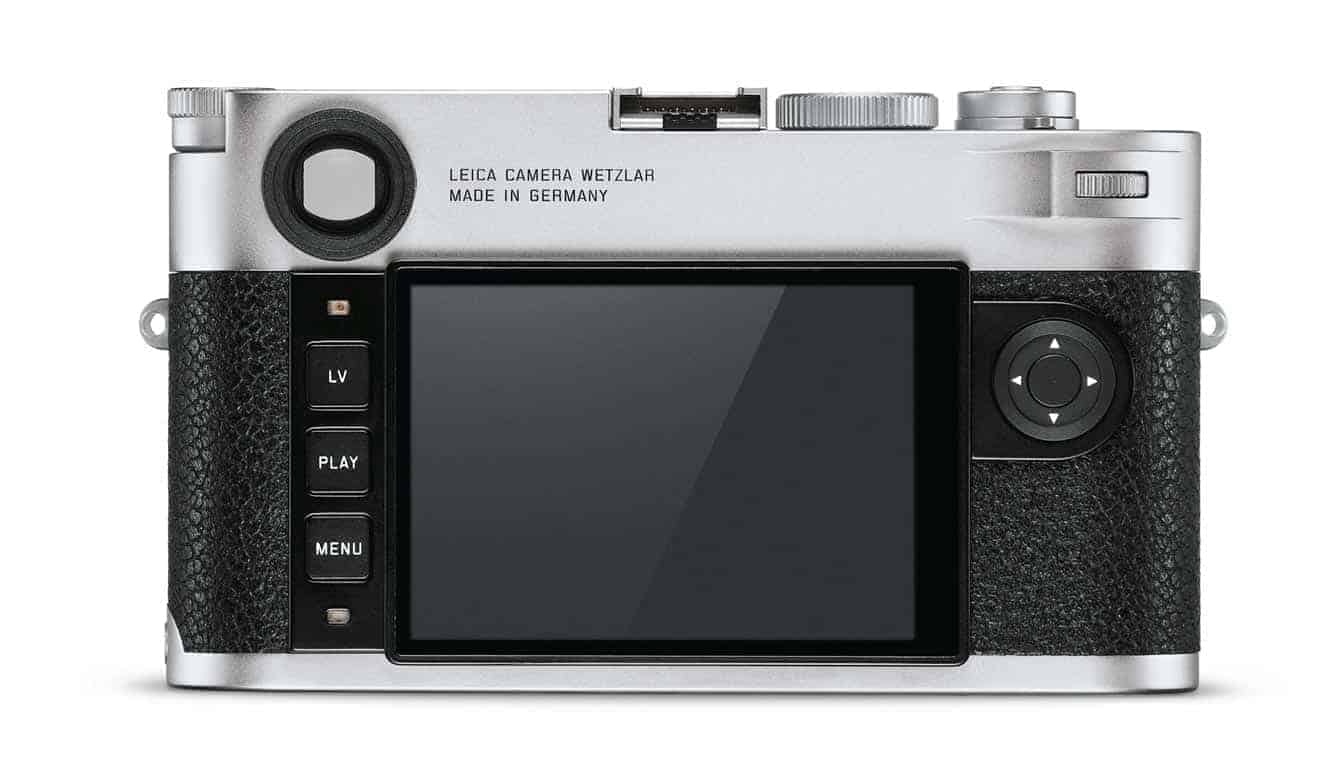

Rear LCD Screen

The 3″ 1.04 million dot rear LCD screen of the camera is made of Corning Gorilla glass, which gives the LCD screen ultimate strength against scratches and knocks. The LCD provides 100% frame coverage.

Leica M10: Construction

New Leica M10 Silver
The Leica M10 comes in two version: Black and Silver.

The M10 carries forward the traditions laid down by older analog rangefinders. There are a lot more manual options to work with than the previous digital rangefinders in the series.

There is a new dedicated ISO dial, along with the shutter dial and the options to choose the aperture and focusing distance.

When the camera is off, you can still set the optimum exposure and other details and be ready to shoot in a fraction of a second, which saves a considerable amount of battery. Plus, you don’t have to rely on the menu of the camera.

Related Post: The Best Leica Lenses

Top and Bottom Panel

Construction quality is top class. The camera boasts a magnesium alloy chassis, the top plate housing of most of the major control dials and buttons as well as the bottom plate are formed out of brass.

The bottom plate is something of a misfit a sort of relic of the film days. Something that is no longer required. It’s more of a hindrance to change batteries and memory cards than anything else.

The overall construction quality, however, evokes confidence.

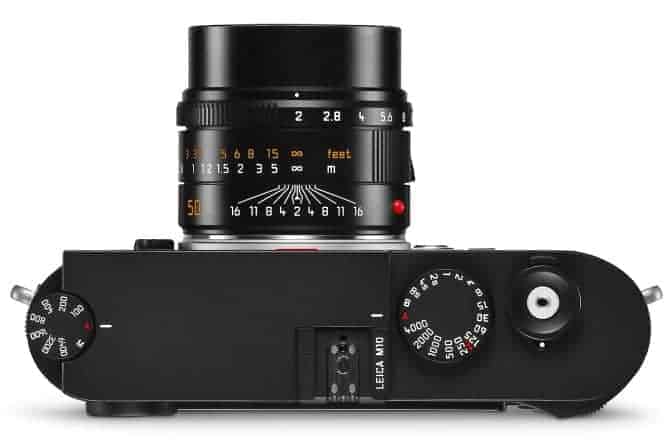

Leica M10 Top Dials and Lens
Leica M10: Top Dials Work also in Switched Off Mode

Along with the significant changes and additions, subtle smaller changes add nice touches to the camera. Like the optical viewfinder for example.

The optimal distance between where the photographer’s eye rests and the viewfinder’s eyepiece is now increased by a healthy 50% for the convenience of photographers who wear glasses.

Having said that, the M10 misses the LED frame line illuminators that are so much a part of some of the previous M-series rangefinders.

Nevertheless, the overall construction is demure compared to the previous rangefinders on the show.

The dimensions are 5.5 x 3.1 x 1.5”. Just for the record, this is the thinnest digital rangefinder that has come out of the Leica stable.

The weight of the camera is a little on the lighter side as well. B&H states that the camera weighs just about 660 grams with the battery.

Related Post: Review of the Sony Alpha 6500


The Leica M10 costs around $6,600 (and will be available soon online here: Leica Section on Amazon).

At that price, this is certainly going to be out of the reach of most amateur and enthusiast photographers. That being said, this is certainly not a camera designed for everyone.

Update: Frist M10 Customer Review (from Amazon.com)

Leica M10 Customer Review

“A spectacular camera. As a previous owner of the M(240) and M-E (M9 sensor) this seems like a big step up. I also own a Sony A7R2 and this camera finally has the same dynamic range and editing latitude that the Sony offers, but with the incredible joy of using a Leica. Fantastic, fantastic camera. […]”

5.0 out of 5 stars – by Sebastiaan on August 21, 2017 (Amazon.com)
